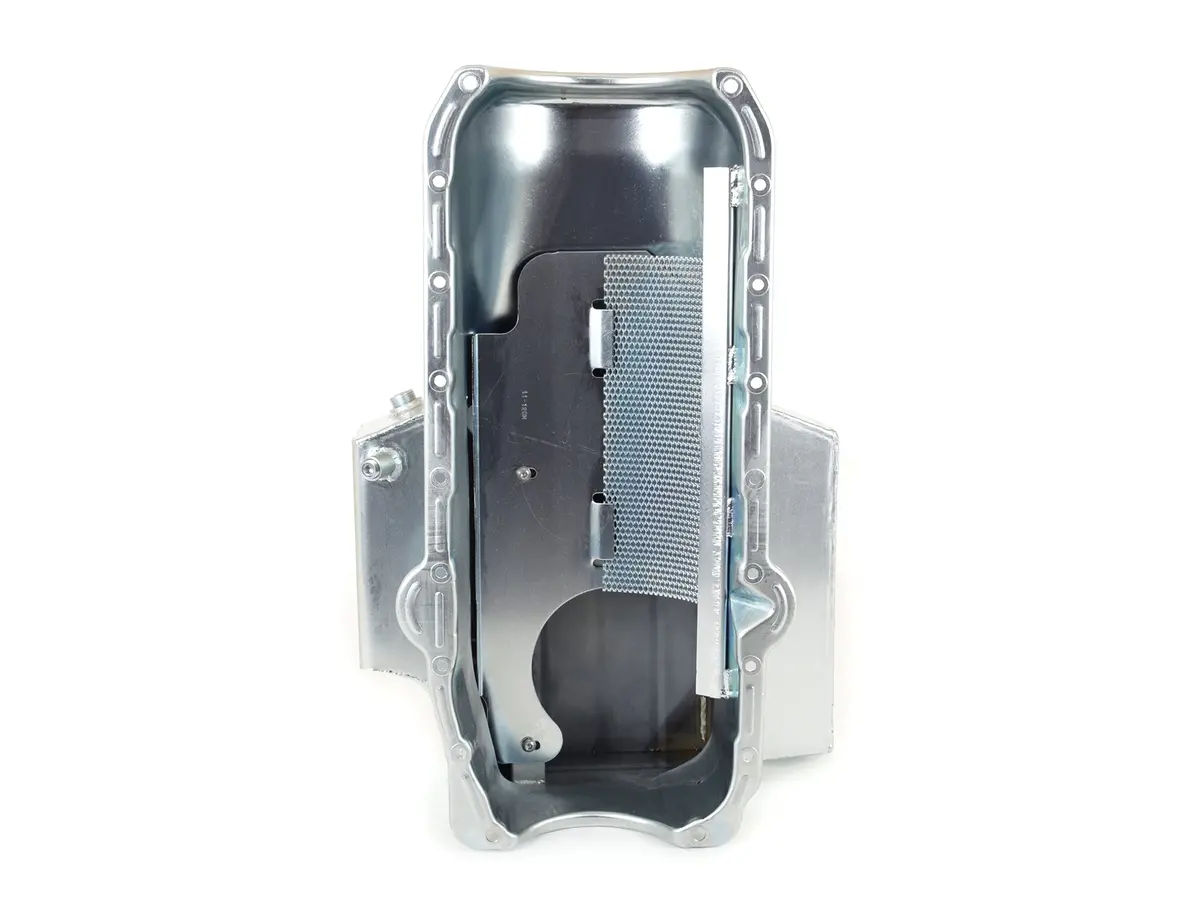

Canton Racing Oil Pan For Small Block Chevy — 12″ Circle Track Long Sump, 7″ Depth, Model 11-120M

Description

This Competition wet sump is for ’80-’85 Small Block Chevys with right side dipstick. Fits front steer chassis with both aftermarket and Camaro front ends, others when the engine is moved. It has a 7″ deep, 15″ wide, 12″ long sump, and an 8 quart system capacity. Will work with all starter and flywheel combinations. Requires one of our pickups.

• 8 qt System Capacity
• 3.75″ Stroke Clearance
• Six Trap Door Baffles & Three Runners
• Crank Scraper
• Bolt in Slosh Baffle
• Built in Windage Tray
• 1/2” NPT Temperature Bung
• Provison for our Pan Mounted Dipstick
• Magnetic Drain Plug

Attributes:

• Brand Name: Canton
• GTIN: 00887753711175
• Baffled: Yes
• Capacity: 8 Quart System Capacity
• Crank Scraper Included: Yes
• Dipstick Port: Yes
• Drain Plug Included: Yes
• Engine: For S.B. Chevy 1980-85 Blocks with right side dipstick
• Feature 1: Baffled with 6 Trap Doors/3 Directional Runners
• Feature 2: Bolt On Slosh Baffle For Oil Control
• Feature 3: Removable Screen Windage Tray and Built in Crank Scraper
• Feature 4: Reduces Crank Windage And Saves Horsepower
• Feature 5: Provision for Canton Pan Mounted Dipstick
• Feature 6: 1/2 NPT Temp Sensor Bung
• Feature 7: Magnetic Drain Plug
• Finish: Silver Plating
• Gasket or Seal Included: No
• Hardware Included: No
• Kicked Out: Yes
• Material: 16 Gauge Steel
• Pickup Included: No
• Recommended Accessory 1: 20-040 – Pickup for Small Block Standard Volume Pumps M55 & M55A
• Recommended Accessory 2: 20-042 – Pickup for Small Block Standard Volume Pumps M155 w/ 3/4″ Tube
• Recommended Accessory 3: 20-070 – Pickup for Small Block High Volume Pumps M55HV
• Recommended Accessory 4: 20-072 – Pickup for Small block High Volume M155HV Pump w/ 3/4″ Tube
• Recommended Accessory 5: 20-077 – Press In Pickup for M10552 & M10555 Pump
• Recommended Accessory 6: 20-071 – Flange Mount Pickup for M10552 & M10555 Pump
• Recommended Accessory 7: 20-100 – Pickup for Big Block 5 bolt pumps M77 & M77HV
• Recommended Accessory 8: 20-850 – Universal Dipstick Kit 1/4? N.P.T. Fitting
• Recommended Accessory 9: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
• Stoke: 3.75 inches
• Windage Tray Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : 1
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.5 x 16.25 x 9.5 inches
• Weight: 20 POUNDS
